A small update on the filtering experiment 29 of Make: Electronics that I wrote about earlier this week. To improve audibility especially of the lower frequencies I had to built an enclosure. The book proposes a plastic box but I had a shoebox made out of cardboard lying around. I cut a circular hole in it just wide enough to fit the 4-inch speaker and fastened it with four bolts and nuts. I placed the breadboard with the amplifier on the bottom of the shoebox. I connected the audio and power and filled the box with isolating material. Then I played a track unfiltered, with low pass filter and with high pass filter. The box definitely made an big improvement to the sound. Conclusion: a shoebox can make a tolerable (and cheap) enclosure for a speaker.
![](http://3.bp.blogspot.com/-PTRvUvO_aBM/VZVsj0tU8_I/AAAAAAAABAw/U0TdRreWo2w/s640/P1010945.jpg) |

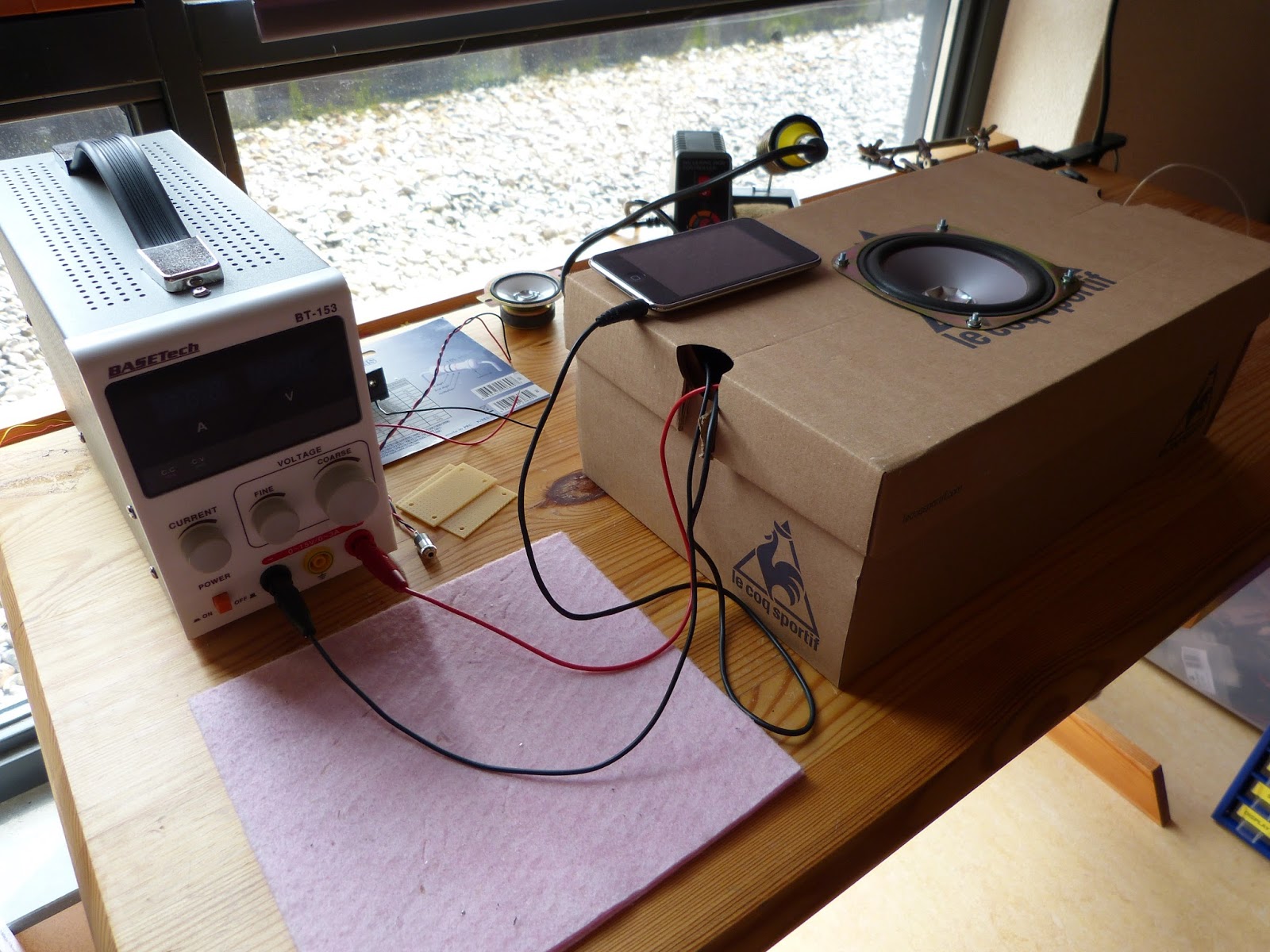

Cardboard box with speaker built in. Labbench and iPod for power and audio-in respectively. |
![](http://4.bp.blogspot.com/--0b3swBE1VY/VZVsj3t3BZI/AAAAAAAABA4/GmEzSqJEdKU/s640/P1010946.jpg) |
Breadboard on the bottom of the shoebox with the coil clearly visible. The coil acts as a low pass filter. |
![](http://2.bp.blogspot.com/-Y7o-0sfexRk/VZVsj2KXLOI/AAAAAAAABA0/xVI2otxdKUE/s640/P1010947.jpg) |
Shoebox stuffed with isolating material in an attempt to improve the sound for this experiment. |
